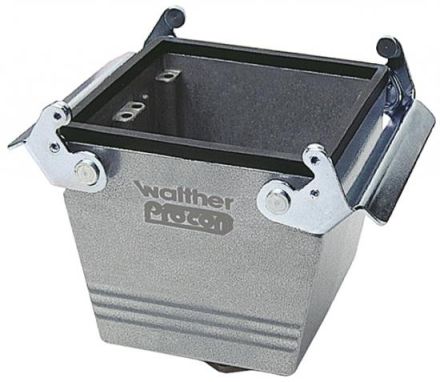

Walther T713632 32-pin 1xM25 82mm high straight coupling housing

In stock

SKU: 486162

Price on request

€41.75

€0

Overview

WALTHER coupling housing, aluminum die-cast housing, height 82mm, with a straight cable entry, with an M25 threaded hole, and cross-locking bracket made of galvanized steel, protection class: IP65, for the series B32, BA12, BB64, D80, DD144 and 2x MOB16

Property	Value
Width:	94 mm
Height:	82 mm
Design of the housing:	Coupling housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	upper part
Depth:	92 mm
Housing color:	gray
Cable gland fastening type:	metric
With nozzle:	no
With seal:	yes
Number of cable entries:	1
