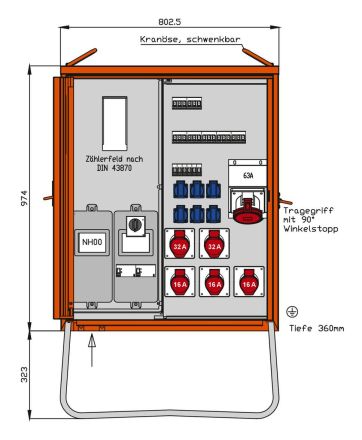

WALTHER connection distribution cabinet, connected load: 55kVA, according to IEC61439-4, and DIN/VDE 43868/1, housing (H16) made of electrolytically galvanized sheet steel, with heavy metal-free plastic coating, color: RAL 2004 -pure orange-, with single door, spring latch for padlock, and recessed handle, with crane eyes and side handles, including hot-dip galvanized base frame with eyelets for ground nails, built-in components up to and including RCD circuit breaker in the insulating housing, protection class: IP 44, measuring device protection class: IP 54, size approx.: 974 x 803 x 360mm / HBT, + base frame height approx.: 323mm, connection:, 1 NH00 fuse switch disconnector 100A, with clamp terminals 10-50qmm , Measurement:, 1 DS meter space without meter according to DIN 43870/2 , Output / protection:, 1 circuit breaker 3P 80A, with thermal-magnetic release, 1 RCD circuit breaker 4P 63A/300mA -B-, 1 CEE mounting box 63A 5P 400V 6h, with circuit breaker (MCB) 3P 50A -D-, 1 RCD circuit breaker 4P 63A/30mA -B-, with circuit breaker (MCB) 3P 50A -C-, 2 CEE mounting boxes 32A 5P 400V 6h, each with 1 circuit breaker (MCB) 3P 32A -C-, 3 CEE mounting boxes 16A 5P 400V 6h, each with 1 miniature circuit breaker (MCB) 3P 16A -C-, 6 earthed sockets 16A 2P 230V, each with 1 miniature circuit breaker (MCB) 1P 16A -C-
| Property | Value |
| Rated voltage: | 230/400 V |
| Main switch rated current: | 80 A |
| Design: | Connection distribution cabinet |
| Rated current: | 80 A |
| Connection load: | 55 kVA |
| Number of CEE sockets 16 A / 400 V / 5-pin: | 3 |
| Number of CEE sockets 32 A / 400 V / 5-pin: | 2 |
| Number of CEE sockets 63 A / 400 V / 5-pin: | 1 |
| Number of SCHUKO sockets: | 6 |
| Number of meter fields: | 1 |
| Main switch: | Circuit breaker |
| Height: | 1297 mm |
| Width: | 803 mm |
| Depth: | 360 mm |
| Protection class (IP): | IP44 |
| Number of residual current circuit breakers 30 mA: | 1 |
| Number of residual current circuit breakers 300 mA: | 1 |
| Number of circuit breakers: | 12 |
| Number of poles main switch: | 3 |
| Material of housing: | Sheet steel |
