Walther WEV0795R1 22 kVA final distribution board

In stock
SKU: 763840
€1,523.36
Into a basketIn the basketGo

Overview

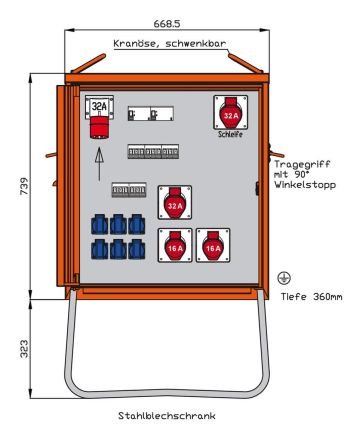

WALTHER final distribution cabinet, connected load: 22kVA, according to IEC61439-4, housing (H06) made of electrolytically galvanized sheet steel, with heavy metal-free plastic coating, color: RAL 2004 -pure orange-, with single door, spring latch for padlock and recessed handle, with crane eyes and side handles, including hot-dip galvanized base frame with eyelets for ground nails, protection class: IP 44, size approx.: 739 x 669 x 360mm / HBT, + base frame height approx.: 323mm, connection:, 1 CEE attachment plug 32A 5P 400V 6h, with phase inverter, outlet / fuse:, 1 CEE attachment socket 32A 5P 400V 6h, as cable loop, 1 RCD circuit breaker 4P 40A/30mA -B-, 1 CEE panel box 32A 5P 400V 6h, with miniature circuit breaker (MCB) 3P 32A -C-, 2 CEE panel boxes 16A 5P 400V 6h, each with 1 miniature circuit breaker (MCB) 3P 16A -C-, 1 RCD circuit breaker 4P 40A/30mA A-, 6 earthed sockets 16A 2P 230V, each with 1 miniature circuit breaker (MCB) 1P 16A -C- , Note:, Before commissioning, check that no residual current circuit breaker type A ** or type F is connected upstream.

Property Value
Rated voltage: 230/400 V
Design: Final distribution cabinet
Rated current: 32 A
Connected load: 22 kVA
Number of CEE sockets 16 A / 400 V / 5-pin: 2
Number of CEE sockets 32 A / 400 V / 5-pin: 2
Number of SCHUKO sockets: 6
Main switch: without
Height: 1062 mm
Width: 669 mm
Depth: 360 mm
Protection class (IP): IP44
Number of residual current circuit breakers 30 mA: 2
Number of circuit breakers: 9
Material of the housing: Sheet steel

Characteristics

Number of SCHUKO sockets6
Connected load22 kVA
HABWEV0795R1 22kVA
ManufacturerWalther
HANWEV0795R1
GTIN4015609068685
VersionFinal distribution cabinet
Rated voltage230/400V
Rated current32 A
Width669 mm
Height1062 mm
IP protection)IP44
Depth360 mm
Housing materialSheet steel
