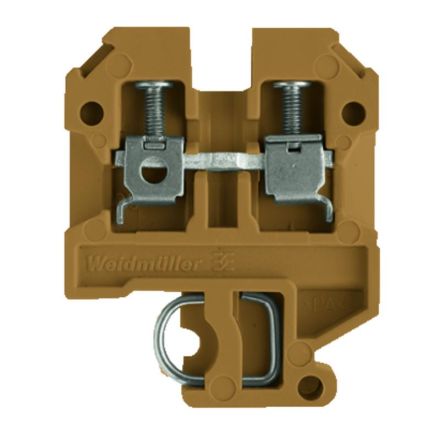

Weidmüller 0279660000 SAK 2.5 terminal block

In stock

SKU: 640403

Price on request

€1.75

€0

Overview

Terminal for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Property	Value
Color:	multicolored
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section, stranded:	0.5 to 4 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per Floor:	2
Rated current In:	24 A
Operating temperature:	-50 to 100 °C
Connectable conductor cross-section, single-wire:	0.5 to 6 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 4 mm²
Design of electrical connection 1:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL 94:	V2
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no
