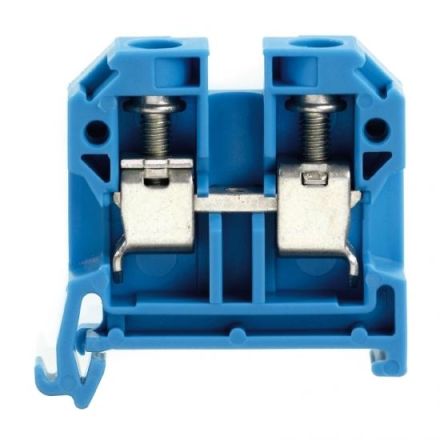

Weidmüller 0443780000 SAK 10/35 BL N-terminal

In stock

SKU: 639994

Price on request

€4.57

€0

Overview

Terminal for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Property	Value
Color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	1.5 to 16 mm²
Connectable conductor cross-section, stranded:	1.5 to 16 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	57 A
Operating temperature:	-50 to 100 °C
Connectable conductor cross-section, single-wire:	1.5 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	1.5 to 10 mm²
Design of electrical connection 1:	Screw connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V2
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no
