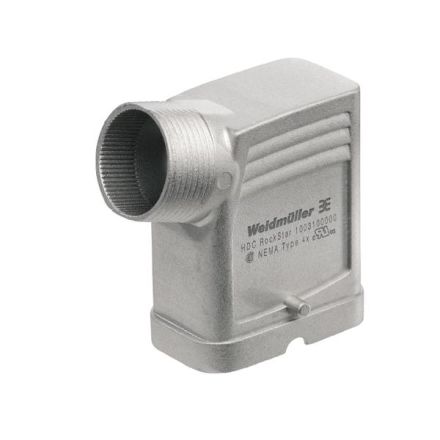

Weidmüller 1003100000 HDC HQM TSLU 1PG21 connector housing

In stock

SKU: 644573

Price on request

€7.87

€0

Overview

The housing is perfectly protected thanks to a special die-cast alloy and a multi-stage sealing of the surface.

Property	Value
Width:	35 mm
Height:	60.5 mm
Housing design:	Plug housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Type of locking:	Cross bracket
EMC version:	yes
With cable gland:	no
Housing material:	zinc
Housing coating:	other
Bracket position:	Lower part
Depth:	50 mm
Housing color:	gray
Material of the adapter plate:	other
Mounting type of the cable gland:	PG
Number of cable entries:	1
