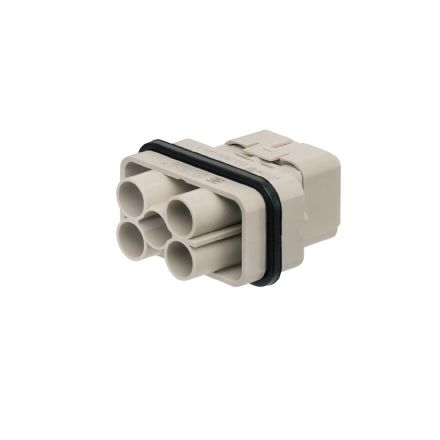

Weidmüller 1003170000 HDC HQ 4/2 MC connector contact

In stock

SKU: 647297

Price on request

€3.22

€0

Overview

Insert for industrial connectors, consisting of contact element and insulating body.

Property	Value
Number of poles:	6
Rated current In:	40 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	1.5 to 6 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	690 V
Contact design:	Pin
Degree of pollution:	3
Contact material:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	1.5 to 6 mm²
Contact insert without contacts:	yes
Design of the electrical connection:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	4
Number of control contacts:	2
Operating temperature:	-40 to 125 °C
Width:	22.4 mm
Height:	48 mm
Depth:	41.6 mm
