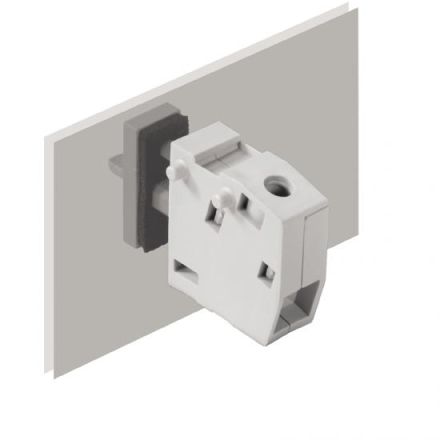

Weidmüller 1003910000 WGK 4 VP/Z feed-through terminal

In stock

SKU: 643567

Price on request

€3.22

€0

Overview

The V variants of the WGK feed-through terminals with an insulating housing and tension clamp connection on the external side and solder connection on the internal side, for use in encapsulated devices (e.g. EMC filters).

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 6 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section stranded:	0.5 to 4 mm²
Connection position:	side
Rated current In:	32 A
Rated voltage:	250 V
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the Insulating material according to UL 94:	V0
Width/grid dimension:	8.1 mm
End plate required:	no
Color:	gray
Material of the insulating body:	Thermoplastic
