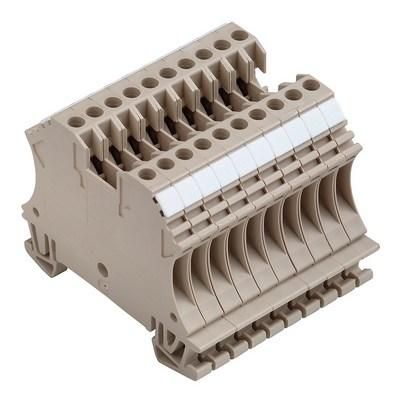

Weidmüller 1020700000 WDU 2.5/10 BEZ terminal block

In stock
SKU: 648703
€16.36
Into a basketIn the basketGo

Overview

Terminal block for direct screwing onto the housing base.

Property Value
Color: beige
Rated voltage: 500 V
Material of the insulating body: Thermoplastic
Rated current In: 24 A
Operating temperature: -60 to 130 °C
Connectable conductor cross-section, single-wire: 0.5 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule: 0.25 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.5 to 4 mm²
Mounting type: DIN rail TH35
Design of electrical connection 1: Screw connection
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Explosion-tested version 'Ex e': yes
Transparent: no

Characteristics

HABWDU 2.5/10 BEZ
Minimal order10 pcs
ManufacturerWeidmüller
HAN1020700000
GTIN4008190175009
Connectable conductor cross-section solid0.5 to 4 mm²
Rated voltage500V
Rated current In24A
Operating temperatur-60 to 130 °C
Flammability class of the insulating material according to UL 94V0
ColorBeige
Mounting typeDIN rail TH35
TransparentNo
