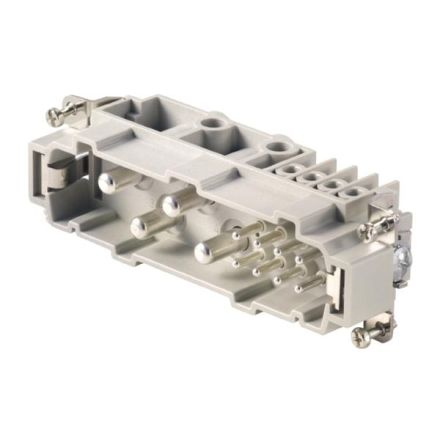

Weidmüller 1023260000 HDC S4/8 MS connector contact

In stock

SKU: 647309

Price on request

€16.41

€0

Overview

Insert for industrial connectors, consisting of contact element and insulating body.

Property	Value
Number of poles:	12
Rated current In:	80 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	1.5 to 16 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	400 V
Contact design:	Pin
Pollution level:	3
Contact material:	other copper alloys
Connectable conductor cross-section, single-wire:	0.5 to 16 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 16 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 16 mm²
Contact insert without contacts:	no
Material of the contact coating:	silver
Design of the electrical connection:	screw connection
With wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	4
Number of control contacts:	8
Operating temperature:	-40 to 125 °C
Width:	34 mm
Height:	42 mm
Depth:	111 mm
