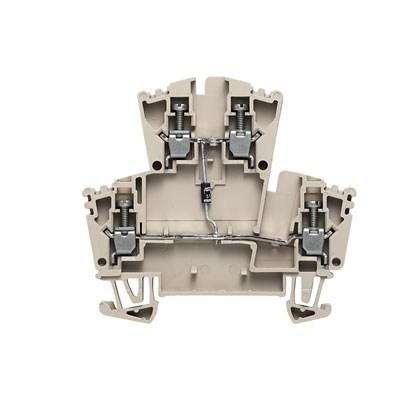

Weidmüller 1023400000 WDK 2.5 1D A.1 terminal

Weidmüller 1023400000 WDK 2.5 1D A.1 terminal

In stock

SKU: 639923

Price on request

€4.57

€0

Into a basketIn the basketGo

Overview

Series terminal for installing electronic components.

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section, stranded:	1.5 to 4 mm²
Rated current In:	0.5 A
Operating temperature:	-50 to 120 °C
Rated voltage:	400 V
Design of electrical connection 1:	Screw connection
Number of levels:	2
Number of terminal points per level:	2
Levels bridged internally:	yes
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	beige
Component type:	Diode
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic

Characteristics

HABWDK2.51D A.1

Minimal order25 pcs

Manufacturer

HAN1023400000

GTIN4008190103538

Connectable conductor cross-section solid0.5 to 4 mm²

Connectable conductor cross-section stranded1.5 to 4 mm²

Rated voltage400V

Rated current In0.5A

Operating temperatur-50 to 120 °C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
