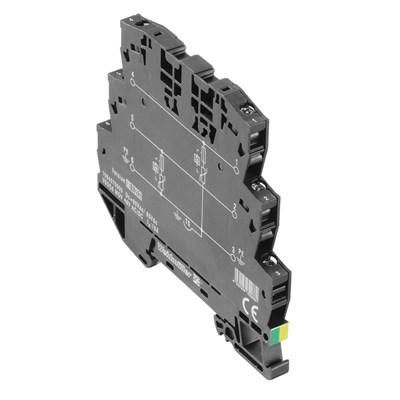

Weidmüller 1064570000 VSSC6 MOV 48VAC/DC surge arrester

Weidmüller 1064570000 VSSC6 MOV 48VAC/DC surge arrester

In stock

SKU: 651812

Price on request

€71.29

€0

Into a basketIn the basketGo

Overview

Device for overvoltage protection in information technology and measurement technology. The device should be installed close to the device to be protected.

Property	Value
Signaling on the device:	without
Mounting type:	DIN rail TH35
Nominal discharge current (8/20):	1 kA
Nominal load current:	12 A
Connection 1:	Terminal
Maximum continuous voltage DC:	85 V
Highest continuous voltage AC:	60 V
With remote signaling contact:	no
Explosion-tested version:	yes
Arrester monitoring:	no
Nominal voltage DC:	68 V
Nominal voltage AC:	48 V

Characteristics

Explosion-tested versionYes

With remote signaling contactNo

Connection 1Clamp

Highest continuous voltage DC85 V

Nominal load current12 A

Nominal voltage DC68 V

HABVSSC6 MOV-48VAC/DC

Minimal order8 pcs

Manufacturer

HAN1064570000

GTIN4032248829880

Highest continuous voltage AC60V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)1kA

Nominal voltage AC48V

Signaling on the deviceWithout
