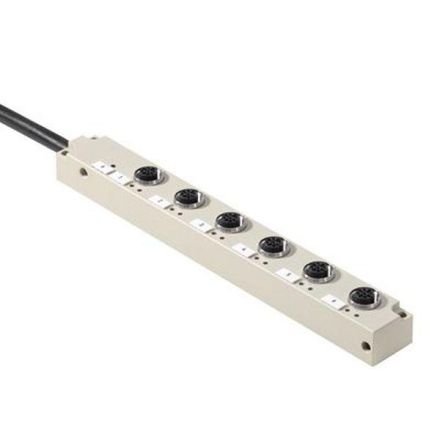

Weidmüller 1265920000 SAI-6-F 4P M12 L 5M sensor/actuator distributor with cable

In stock

SKU: 648147

Price on request

€123.34

€0

Overview

Distributor for bundling several input signals to a central cable outlet.

Property	Value
Number of sensor/actuator slots:	6
Length of the pre-assembled cable:	5 m
Number of poles of the sensor/actuator slots:	4
Protection class (IP):	IP68
Material of the contact base:	Brass
Connection for NPN sensors:	no
With LED display:	yes
Degree of pollution:	3
Material of the contact coating:	Gold
Cable length configurable:	no
Operating temperature:	-20 to 80 °C
Number of channels per slot:	4
Material of the insulating body:	PBT
Explosion protection category for dust:	without
Drag chain suitability of the fixed cable version:	yes
Design of the outlets for sensor/actuator cables:	other
Threaded bushings of the sensor/actuator slots:	M12
Operating voltage:	30 to 10 V
Explosion protection category for gas:	without
Max. current load capacity per I/O signal:	3 A
Max. Current load capacity per connection socket:	3 A
