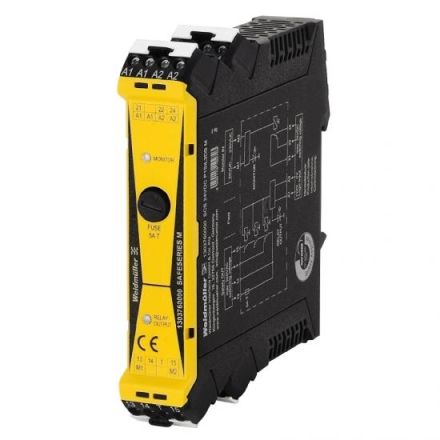

Weidmüller 1303760000 SCS 24VDC P1SIL3DS M Safety switching devices

In stock

SKU: 650789

Price on request

€130

€0

Overview

Safety relay as an interface between safety control and field level for the safe shutdown of system components.

Property	Value
Number of outputs, safety-related, undelayed, contact-based:	1
Suitable for monitoring position switches:	no
Suitable for monitoring proximity switches:	no
Suitable for monitoring magnetic switches:	no
With UL approval:	yes
With Muting function:	no
Mounting rail mounting possible:	yes
Number of outputs, signaling function, undelayed, contact-based:	1
Design of the electrical connection:	screw connection
Suitable for monitoring optoelectronic protective devices:	no
Suitable for monitoring EMERGENCY STOP circuits:	no
Rated control supply voltage Us at DC:	19.2 to 28.8 V
Suitable for monitoring valves:	yes
Suitable for monitoring tactile sensors:	no
With approval for BG BIA:	no
Width:	22.5 mm
Height:	117.3 mm
Depth:	114.1 mm
With removable terminals:	yes
With Start input:	no
With feedback loop:	yes
SIL according to IEC 61508:	3
