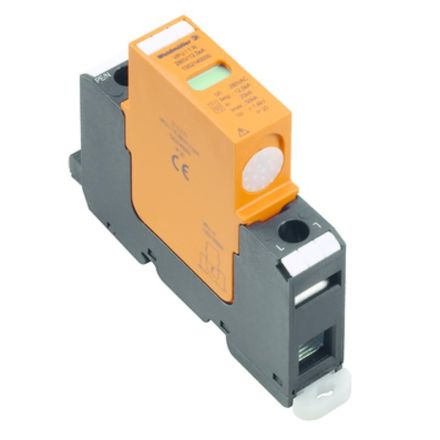

Weidmüller 1352140000 VPU I 1 R 280V/12.5KA lightning arrester

In stock

SKU: 641460

Price on request

€134.29

€0

Overview

Device for surge protection in energy technology and power supply. The device should be installed close to the power supply of the system to be protected.

Property	Value
Protection level:	1.4 kV
Nominal discharge current (8/20):	25 kA
Maximum continuous voltage AC:	280 V
Nominal voltage AC:	230 V
Protection level LN:	1.4 kV
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (single/multi-wire):	50 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	yes
Network type TN-C:	no
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Network type other:	yes
Number of conductors (without earth):	1
Short-circuit strength (Isccr):	25 kA
Max. discharge current (8/20):	25 kA
