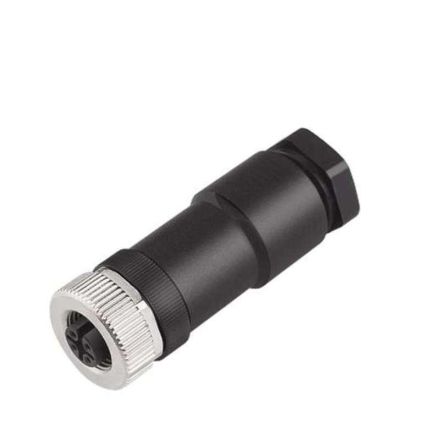

Weidmüller 1353750000 SAIB-5/11-1.5 circular connector

In stock

SKU: 649357

Price on request

€16.27

€0

Overview

Connectors for free assembly for individual cable lengths. It is particularly suitable for applications with limited space.

Property	Value
Material of the housing:	Plastic
Design of the electrical connection:	Screw connection
Degree of pollution:	3
Type of locking:	Screw connection
Rated voltage:	60 V
Material of the contact coating:	Gold
Design of the housing:	straight
Protection class (IP), mounted:	IP67
Contact design:	socket
Connectable conductor cross-section, stranded:	0.14 to 1.5 mm²
Number of data contacts:	5
Number of power contacts:	5
Number of control contacts:	5
For cable outer diameter:	8 to 10 mm
Housing coating:	plastic coated
Threaded ring material:	die-cast zinc
Shielded:	no
