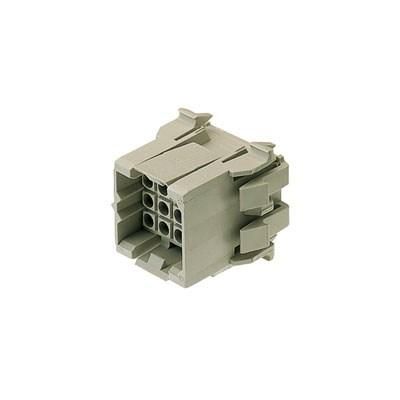

Weidmüller 1415100000 RSV1,6 S9 GR PCB connector

In stock

SKU: 647619

Price on request

€3.01

€0

Overview

Plug-in circuit board connection with innovative connection technology for safe and intuitive handling.

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 2.5 mm²
Design of the electrical connection:	Crimp connection
Rated voltage:	400 V
Rated impulse voltage:	4 kV
Rated current In:	15 A
Operating temperature:	-50 to 100 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	gray
Contact design:	pin
With protective conductor:	no
Pitch of the connections:	5 mm
Pitch of the contacts:	5 mm
Protection class (IP), mounted:	IP20
Overvoltage category:	III
Pollution level:	2
Housing material:	Plastic
Insulating body material:	Polyamide (PA)
Contact material:	Copper
Angle contact/conductor connection:	180° (horizontal)
Connection type:	flexible PCB connector
Number of poles:	9
Housing coating:	other
