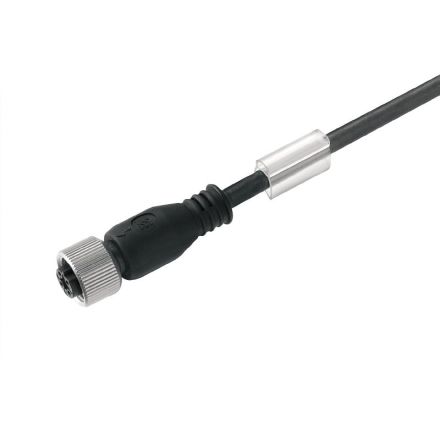

Weidmüller 1424280500 SAIL-M12BW-12S5.0U sensor/actuator cable

In stock

SKU: 650028

Price on request

€60.20

€0

Overview

The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable offers a factory-connected and tested connection of the connector to the cable.

Property	Value
Rated current In:	1.5 A
Color of the cable sheath:	black
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Number of poles:	12
Design of electrical connection, field side:	M12
Type of plug contact, field side:	Female (socket)
Arrangement of the cable feed, field side:	angled
Design of electrical connection, housing side:	M12
Type of plug contact, housing side:	Female (socket)
Arrangement of the cable feed, housing side:	angled
Cable length:	5 m
Halogen-free:	yes
Shielded:	yes
Radiation-crosslinked:	no
Permissible cable external temperature after installation without vibration:	-40 to 90 °C
Permissible cable external temperature during installation/handling:	-30 to 90 °C
Rated voltage:	30 V
Protection class (IP):	IP67
