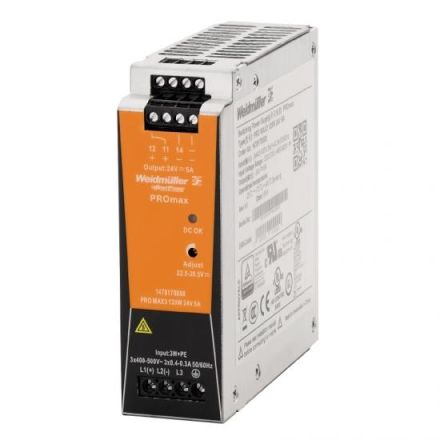

Weidmüller 1478170000 PRO MAX3 120W 24V 5A power supply

In stock

SKU: 641641

Price on request

€105.64

€0

Overview

DC power supply for providing DC voltage for different applications.

Property	Value
Installation height:	230 mm
Performance level according to EN ISO 13849-1:	without
1. Output voltage:	22.5 to 29.5 V
Type of supply voltage:	AC/DC
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	320 to 575 V
Rated supply voltage at DC:	450 to 800 V
Rated supply voltage at AC 60 Hz:	320 to 575 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	yes
Power consumption:	133.3 VA
Power output:	120 W
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	40 mm
Height:	130 mm
Depth:	125 mm
Nominal value of output voltage 1:	24 V
Nominal value of output current 1:	5 A
Installation width:	100 mm
SIL according to IEC 61508:	without
