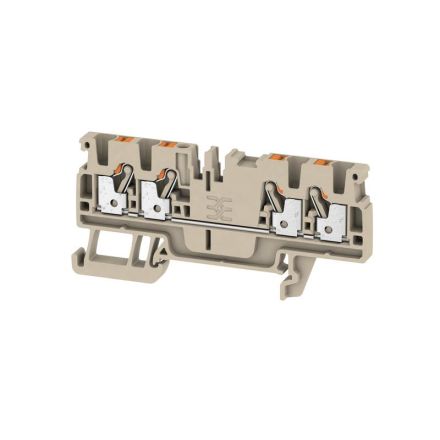

Weidmüller 1521690000 A4C 2.5 800V 24A 0.5-2.5qmm dark beige feed-through terminal

In stock

SKU: 642257

Price on request

€1.15

€0

Overview

Terminal for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Property	Value
Color:	beige
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section, stranded:	0.5 to 4 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per Floor:	4
Rated current In:	24 A
Operating temperature:	-60 to 130 °C
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 4 mm²
Design of electrical connection 1:	Plug connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
