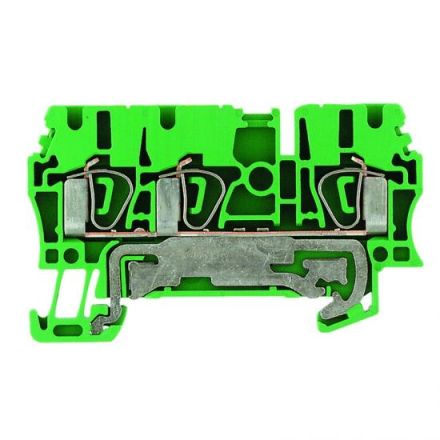

Weidmüller 1608650000 ZPE 2.5/3AN protective conductor terminal

In stock
SKU: 639468
€3.02
Into a basketIn the basketGo

Overview

Terminal with protective conductor contact for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Property Value
Operating temperature: -50 to 120 °C
Connectable conductor cross-section, single-wire: 0.5 to 4 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 0.5 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.5 to 2.5 mm²
PEN function possible: no
Design of electrical connection 1: spring-loaded connection
Number of levels: 1
Number of terminal points per level: 3
Color: green/yellow
Mounting type: top hat rail TH35
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Material of the insulating body: Thermoplastic

Characteristics

HABZPE2.5/3AN
ManufacturerWeidmüller
HAN1608650000
GTIN4008190076559
Connectable conductor cross-section solid0.5 to 4 mm²
Operating temperatur-50 to 120 °C
Flammability class of the insulating material according to UL 94V0
Mounting typeDIN rail TH35
