Weidmüller 1712520000 HDC-KIT-HE 16.120 rectangular connector

Weidmüller 1712520000 HDC-KIT-HE 16.120 rectangular connector

In stock

SKU: 648634

Price on request

€45.01

€0

Into a basketIn the basketGo

Overview

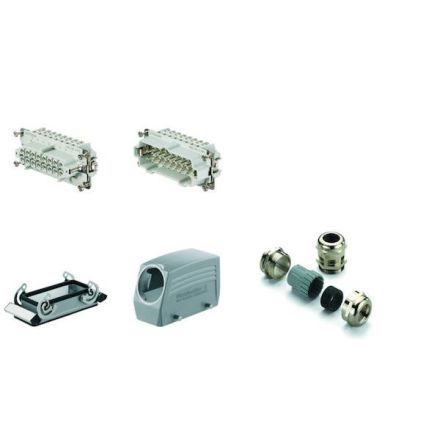

The rectangular connector set usually consists of a pin insert, socket insert, plug housing, attachment housing and cable gland.

Property	Value
Rated voltage:	500 V
Rated current In:	16 A
Design of the electrical connection:	Screw connection
With protective conductor:	yes
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 2.5 mm²
Connectable Conductor cross-section, single-wire:	0.5 to 2.5 mm²
Operating temperature:	-40 to 100 °C
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 2.5 mm²
Ambient temperature:	-40 to 100 °C
Connectable conductor cross-section, stranded:	0.5 to 2.5 mm²
Mounting type:	screwed
Housing material:	Aluminium
Number of poles:	16
Housing coating:	powder-coated
EMC version:	no

Characteristics

HABHDC-KIT-HE 16.120

Manufacturer

HAN1712520000

GTIN4008190947743

Connectable conductor cross-section solid0.5 to 2.5 mm²

Connectable conductor cross-section stranded0.5 to 2.5 mm²

Design of the electrical connectionScrew connection

Rated voltage500V

Rated current In16A

Housing coatingPowder coated

Operating temperatur-40 to 100 °C

EMC versionNo

Mounting typeScrewed

Number of poles16

Ambient temperature-40 to 100 °C

Housing materialAluminum
