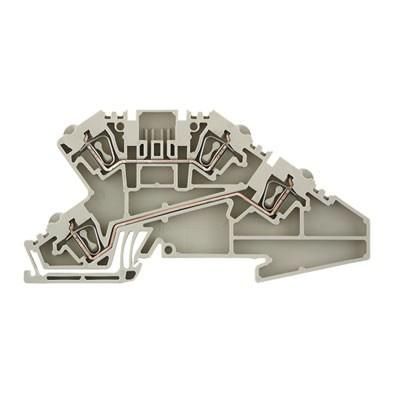

Weidmüller 1720830000 ZDL 2.5/L/L Vert. terminal block

In stock

SKU: 640392

Price on request

€3.02

€0

Overview

Terminal for energy distribution in building installations.

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 4 mm²
Width/grid dimension:	5.1 mm
Rated voltage:	400 V
Basic color:	beige
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 4 mm²
Connection position:	angled
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 2.5 mm²
Operating temperature:	-50 to 120 °C
Design of electrical connection 1:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
Height with lowest mounting type:	48 mm
Length:	95 mm
End plate required:	yes
With PE function:	no
With N-separation slide:	no
N-function possible:	no
With test separator:	no
Material of the insulating body:	Thermoplastic
