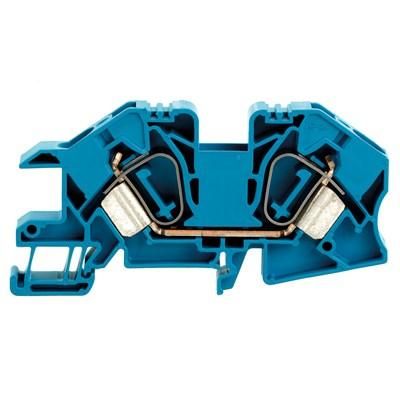

Weidmüller 1739590000 ZDU 16S BL terminal

In stock

SKU: 639897

Price on request

€3.20

€0

Overview

Terminal for energy distribution in building installations.

Property	Value
Connectable conductor cross-section, single-wire:	1.5 to 16 mm²
Width/grid dimension:	12 mm
Rated voltage:	400 V
Basic color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	1.5 to 16 mm²
Connection position:	angled
Connectable conductor cross-section, fine-stranded with wire end ferrule:	1.5 to 16 mm²
Operating temperature:	-50 to 120 °C
Connectable conductor cross-section, multi-stranded:	16 to 25 mm²
Design of electrical connection 1:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
Height for lowest installation type:	48 mm
Length:	95 mm
End plate required:	yes
With PE function:	no
With N-separation slide:	no
N-function possible:	yes
With test separator:	no
Material of the insulating body:	Thermoplastic
