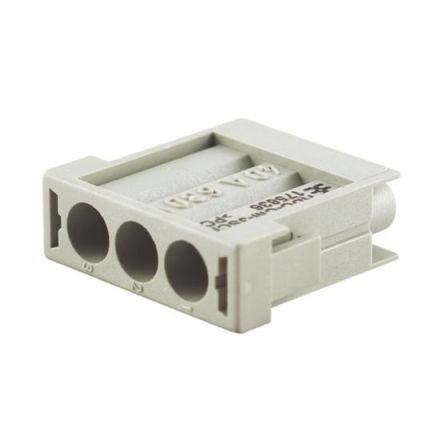

Weidmüller 1758360000 HDC CM 3 MC connector contact

Weidmüller 1758360000 HDC CM 3 MC connector contact

In stock

SKU: 647373

Price on request

€2.46

€0

Into a basketIn the basketGo

Overview

Use for industrial connectors, consisting of contact element and insulating body.

Property	Value
Number of poles:	3
Rated current In:	40 A
Rated impulse voltage:	8 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	1.5 to 10 mm²
Rated voltage:	690 V
Overvoltage category:	III
Contact design:	Pin
Diameter of the plug contact:	3.6 mm
Degree of pollution:	3
Material of the contact:	other
Contact insert without contacts:	yes
Design of the electrical connection:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Width:	11.4 mm
Height:	31.4 mm
Depth:	34 mm

Characteristics

Rated surge voltage8 kV

HABHDC CM 3 MC

Manufacturer

HAN1758360000

GTIN4032248019588

Connectable conductor cross-section stranded1.5 to 10 mm²

Design of the electrical connectionCrimp connection

Rated voltage690V

Rated current In40A

Width11.4 mm

Flammability class of the insulating material according to UL 94V0

Height31.4 mm

Number of poles3

Depth34 mm

Degree of contamination3

Overvoltage categoryIII
