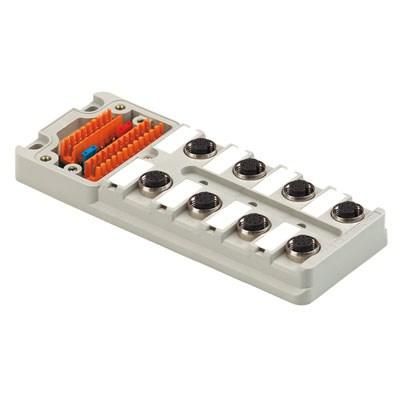

Weidmüller 1760061000 SAI-8-M 3P IDC UT without cable sensor/actuator distributor

In stock

SKU: 648204

Price on request

€129.65

€0

Overview

Distributor for bundling several input signals on a central plug connection.

Property	Value
Design of the connector for the main line:	other
Connectable conductor cross-section:	0.08 to 1.5 mm²
Outer cable diameter for cable gland:	1.2 to 1.6 mm
Number of sensor/actuator slots:	8
Number of channels per slot:	3
Design of the Outlets for sensor/actuator cables:	M12
Number of pins in the sensor/actuator slots:	3
Degree of pollution:	2
Operating voltage:	30 to 10 V
Max. current load per I/O signal:	4 A
Max. Current carrying capacity per connection base:	4 A
Material of the contact base:	Brass
Material of the contact coating:	Gold
Material of the insulating body:	PBT
Threaded bushings of the sensor/actuator slots:	M12
With LED display:	yes
With electrical isolation:	yes
Connection for NPN sensors:	no
Drag chain suitability of the fixed cable version:	no
Housing material:	plastic
Housing color:	gray
Operating temperature:	-20 to 90 °C
Protection class (IP):	IP67
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Width:	60 mm
Height:	41.5 mm
Length:	152 mm
