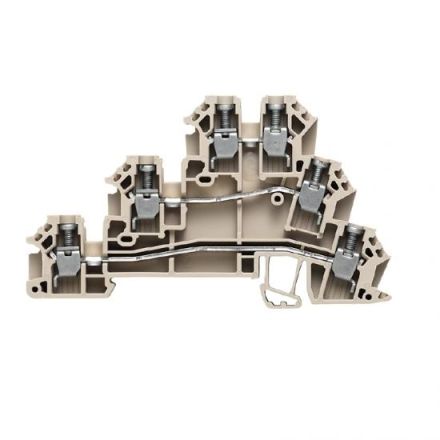

Weidmüller 1784180000 DLD 2.5 DB potential supply terminal block

In stock

SKU: 639529

Price on request

€3.23

€0

Overview

Initiator, actuator terminal for connecting or joining wires, cores and cables with permanently secure contact.

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 2.5 mm²
Connectable conductor cross-section, single-stranded:	0.5 to 4 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 4 mm²
Rated current In:	24 A
Connectable conductor cross-section stranded:	0.5 to 4 mm²
Operating temperature:	-50 to 120 °C
Color:	beige
Rated voltage:	250 V
Number of levels:	3
Design of electrical connection 1:	screw connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
With PE connection:	no
With feed-in function:	no
Number of terminal points per level:	2
Levels bridged internally:	no
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
