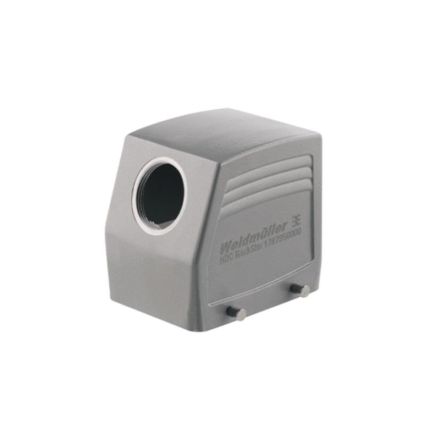

Weidmüller 1787960000 HDC 32A TSBU 1M25G connector housing

In stock

SKU: 644871

Price on request

€13.81

€0

Overview

The housing is perfectly protected thanks to a special die-cast alloy and a multi-stage sealing of the surface.

Property	Value
Width:	71.5 mm
Height:	75 mm
Housing design:	Plug housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Type of locking:	Cross bracket
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	no
Housing material:	Aluminium
Housing coating:	powder-coated
Bracket position:	Lower part
Depth:	82 mm
Housing color:	gray
Material of the adapter plate:	aluminum
Cable gland fastening type:	metric
Number of cable entries:	1
