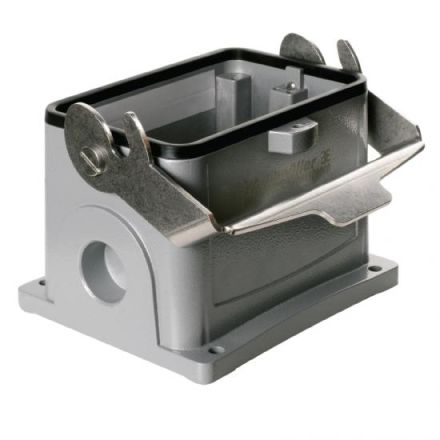

Weidmüller 1788360000 HDC 48B SLU 2M40G connector housing

In stock

SKU: 644900

Price on request

€78.13

€0

Overview

The housing is perfectly protected thanks to a special die-cast alloy and a multi-stage sealing of the surface.

Property	Value
Width:	151.2 mm
Height:	100 mm
Housing design:	Socket housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	other
Type of locking:	Longitudinal bracket
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
Housing material:	aluminium
Housing coating:	powder-coated
Bracket position:	Lower part
Depth:	143 mm
Housing color:	gray
Material of the adapter plate:	aluminum
Mounting type of the cable gland:	metric
With seal:	yes
Number of cable entries:	2
