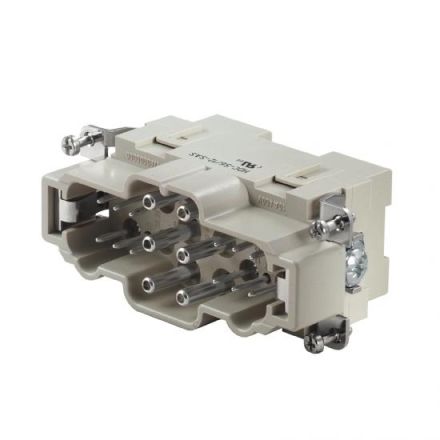

Weidmüller 1790000000 HDC S6 12 SAS connector contact

In stock
SKU: 647379
€57.74
Into a basketIn the basketGo

Overview

Insert for industrial connectors, consisting of contact element and insulating body.

Property Value
Number of poles: 18
Rated current In: 48 A
Rated impulse voltage: 8 kV
With protective conductor: yes
Connectable conductor cross-section, stranded: 2.5 to 10 mm²
Material of the connector insert: Thermoplastic
Rated voltage: 690 V
Contact design: Pin
Pollution level: 3
Contact material: other copper alloys
Connectable conductor cross-section, single-wire: 2.5 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 2.5 to 10 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 2.5 to 10 mm²
Contact insert without contacts: no
Material of the contact coating: silver
Design of the electrical connection: Axial screw connection
With wire protection: yes
Flammability class of the insulating material according to UL 94: V0
Material of the contact insert: Thermoplastic
Number of power contacts: 6
Number of control contacts: 12
Operating temperature: -40 to 125 °C
Width: 34 mm
Height: 47.3 mm
Depth: 84.5 mm

Characteristics

Rated surge voltage8 kV
HABHDC S6 12 SAS
ManufacturerWeidmüller
HAN1790000000
GTIN4032248212064
Connectable conductor cross-section solid2.5 to 10 mm²
Connectable conductor cross-section stranded2.5 to 10 mm²
Design of the electrical connectionAxial screw connection
Rated voltage690V
Rated current In48 A
Operating temperatur-40 to 125 °C
Width34 mm
Flammability class of the insulating material according to UL 94V0
Height47.3 mm
Number of poles18
Depth84.5 mm
Degree of contamination3
