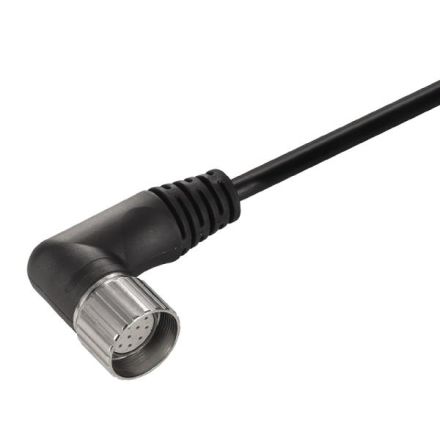

Weidmüller 1877442000 SAIB-M23-12P-AN-20M sensor/actuator cable

In stock

SKU: 650166

Price on request

€126.30

€0

Overview

The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable offers a factory-connected and tested connection of the connector to the cable.

Property	Value
Rated current In:	8 A
Color of the cable sheath:	black
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Number of poles:	12
Design of electrical connection, field side:	other
Type of plug contact, field side:	Female (socket)
Arrangement of cable feed, field side:	angled
Design of electrical connection, housing side:	other
Type of plug contact, housing side:	Female (socket)
Arrangement of cable feed, housing side:	angled
Cable length:	20 m
Halogen-free:	yes
Shielded:	no
Radiation-crosslinked:	no
Permissible external cable temperature after installation without vibration:	-50 to 80 °C
Permissible external cable temperature during installation/handling:	-25 to 80 °C
Rated voltage:	120 V
Protection class (IP):	IP67
