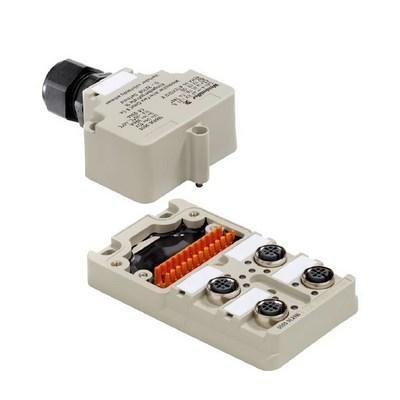

Weidmüller 1896050000 SAI-4-M 5P M12 Ex ia without cable sensor/actuator distributor

In stock

SKU: 648250

Price on request

€122.60

€0

Overview

Distributor for bundling several input signals on a central plug connection.

Property	Value
Design of the connector for the main line:	other
Connectable conductor cross-section:	0.1 to 1.5 mm²
Number of sensor/actuator slots:	4
Number of channels per slot:	5
Design of the outputs for sensor/actuator lines:	M12
Number of poles of the Sensor/actuator slots:	5
Degree of pollution:	3
Operating voltage:	30 to 10 V
Max. current load per I/O signal:	100 A
Max. Current carrying capacity per connection base:	100 A
Material of the contact base:	Brass
Material of the contact coating:	Gold
Material of the insulating body:	PBT
Threaded bushings of the sensor/actuator slots:	M12
With LED display:	yes
Connection for NPN sensors:	no
Suitable for drag chains of the Fixed cable version:	no
Housing material:	plastic
Housing color:	gray
Operating temperature:	-20 to 40 °C
Protection class (IP):	IP68
Explosion protection category for gas:	without
Explosion protection category for dust:	without
