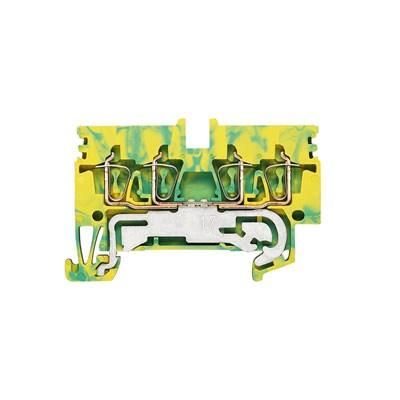

Weidmüller 1933780000 ZPE 2.5N/4AN protective conductor terminal

In stock
SKU: 649690
€3.22
Into a basketIn the basketGo

Overview

Terminal with protective conductor contact for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Property Value
Operating temperature: -50 to 120 °C
Connectable conductor cross-section, single-wire: 0.5 to 4 mm²
Connectable conductor cross-section, multi-wire: 1.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with Wire end ferrule: 0.5 to 1.5 mm²
PEN function possible: no
Design of electrical connection 1: Spring-loaded connection
Number of levels: 1
Number of terminal points per level: 4
Color: green/yellow
Mounting type: DIN rail TH35
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Material of the insulating body: Thermoplastic

Characteristics

HABZPE2.5N/4AN
ManufacturerWeidmüller
HAN1933780000
GTIN4032248587117
Connectable conductor cross-section solid0.5 to 4 mm²
Connectable conductor cross-section stranded1.5 to 2.5 mm²
Operating temperatur-50 to 120 °C
Flammability class of the insulating material according to UL 94V0
Mounting typeDIN rail TH35
