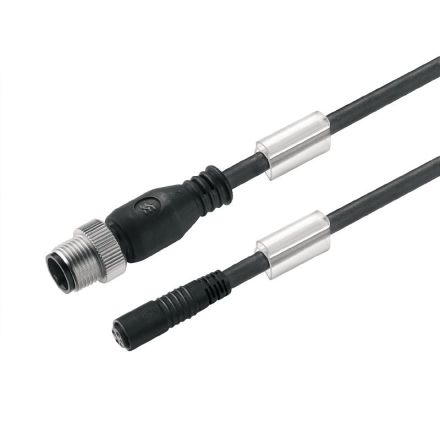

Weidmüller 1984530080 SAIL-M12GM8GR-3-0.8U sensor/actuator cable

In stock
SKU: 650432
€16.40
Into a basketIn the basketGo

Overview

The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable offers a factory-connected and tested connection of the connector to the cable.

Property Value
Rated current In: 4 A
Color of the cable sheath: black
With LED display: no
Material of the cable sheath: Polyurethane (PUR)
Number of poles: 3
Design of electrical connection, field side: M12
Type of plug contact, field side: Female (socket)
Arrangement of the cable feed, field side: straight
Design of electrical connection, housing side: M12
Type of plug contact, housing side: Male (plug)
Arrangement of the cable feed, housing side: straight
Cable length: 0.8 m
Halogen-free: yes
Shielded: no
Radiation-crosslinked: no
Permissible cable external temperature after installation without vibration: -40 to 80 °C
Permissible cable external temperature during installation/handling: -25 to 80 °C
Rated voltage: 60 V
Protection class (IP): IP65

Characteristics

ShieldedNo
HABSAIL-M12GM8GR-3-0.8U
ManufacturerWeidmüller
HAN1984530080
GTIN4032248732241
Rated voltage60V
Rated current In4 A
Halogen freeYes
Cable length0.8m
With LED displayNo
Number of poles3
IP protection)IP65
