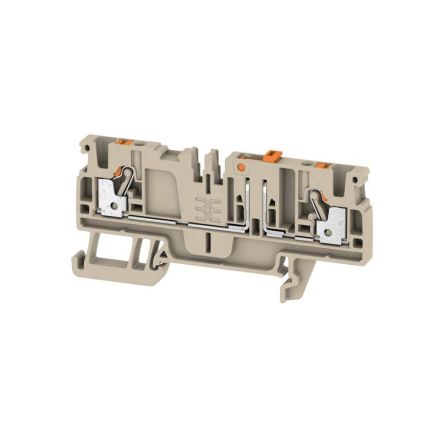

Weidmüller 1989800000 ADT 2.5 2C 400V 20A 0.14-2.5qmm beige test terminal blocks

In stock

SKU: 642354

Price on request

€2.01

€0

Overview

The test-disconnect terminal block is used to disconnect circuits for testing and measuring purposes.

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.5 to 4 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 4 mm²
Rated current In:	20 A
Operating temperature:	-60 to 130 °C
Rated voltage:	500 V
Design of electrical connection 1:	Plug connection
Number of levels:	1
Number of terminal points per level:	2
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	beige
Design of the longitudinal separation:	pivoting
Design of the transverse separation:	without
With integrated test socket:	yes
Material of the insulating body:	Thermoplastic
