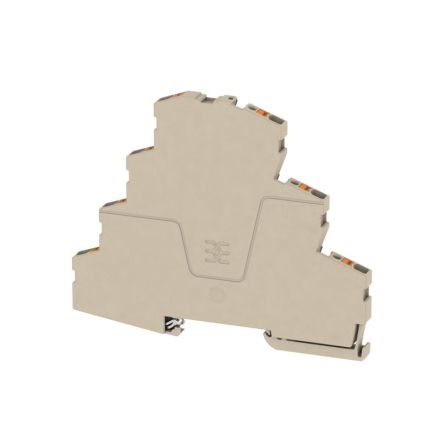

Weidmüller 2434370000 AMC 2.5 800V terminal block

In stock

SKU: 648675

Price on request

€9.79

€0

Overview

The motor connection terminal combines the performance characteristics of the larger grid with the width of the smaller grid. The result: maximizing the rated current while minimizing the size. This reduces the workload when it comes to purchasing, logistics and design-in.

Property	Value
Color:	beige
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 4 mm²
Connectable conductor cross-section, stranded:	0.5 to 4 mm²
Rated voltage:	800 V
Number of levels:	3
Number of terminal points per level:	2
Rated current In:	22 A
Operating temperature:	-60 to 130 °C
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 4 mm²
Design of electrical connection 1:	Plug connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
