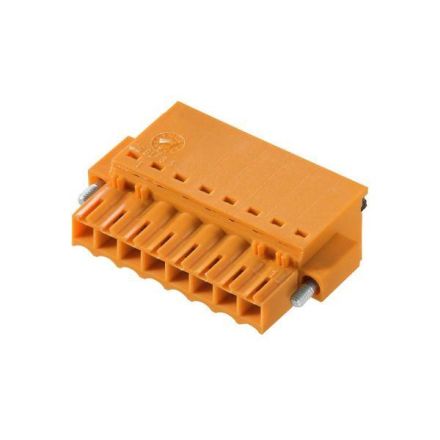

Weidmüller 2459560000 BLF 3.50/24/180F SN OR BX LP connector

In stock

SKU: 652238

Price on request

€22.14

€0

Overview

Plug-in circuit board connection with innovative connection technology for safe and intuitive handling.

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.14 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 1.5 mm²
Design of the electrical Connection:	Plug-in terminal connection
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	17.1 A
Operating temperature:	-50 to 120 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	orange
Contact design:	Socket
With protective conductor:	no
Pitch of connections:	3.5 mm
Pitch of contacts:	3.5 mm
Protection class (IP), mounted:	other
Overvoltage category:	III
Pollution degree:	2
Material of the contact coating:	tin
Material of the Housing:	Plastic
Material of the insulating body:	Polyamide (PA)
Material of the contact:	Copper
Angle of contact/conductor connection:	180° (horizontal)
Connection type:	flexible circuit board connector
Number of poles:	24
Housing coating:	other
