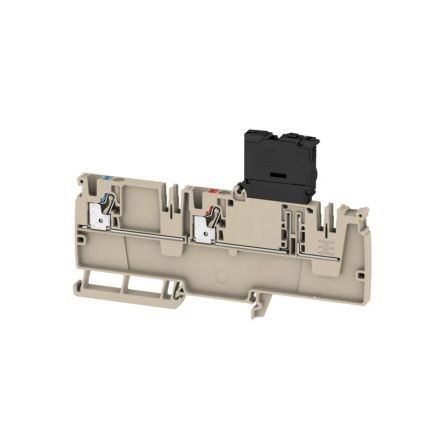

Weidmüller 2460140000 AAP22 4 LI-FS 30-70V terminal blocks

In stock
SKU: 652274
€13.73
Into a basketIn the basketGo

Overview

Terminal block for connecting or joining conductors with a permanently secure contact. Hardened steel withstands mechanical forces, tin-coated copper ensures the best conductivity. With removable carrier for a fuse insert.

Property Value
Connectable conductor cross-section, single-wire: 0.5 to 4 mm²
Connectable conductor cross-section, multi-wire: 0.5 to 4 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 0.5 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.5 to 4 mm²
Operating temperature: -60 to 130 °C
Rated current In: 6.3 A
Design of the fuse insert: G-fuse 5x20 mm
Rated voltage: 70 V
Design of electrical connection 1: Plug-in terminal connection
Mounting type: DIN rail TH35
Color: beige
End plate required: yes
Flammability class of the insulating material according to UL 94: V0
Material of the insulating body: Thermoplastic

Characteristics

HABAAP22 4 LI-FS 30-70V
ManufacturerWeidmüller
HAN2460140000
GTIN4050118475562
Connectable conductor cross-section solid0.5 to 4 mm²
Connectable conductor cross-section stranded0.5 to 4 mm²
Rated voltage70V
Rated current In6.3 A
Operating temperatur-60 to 130 °C
Flammability class of the insulating material according to UL 94V0
ColorBeige
Mounting typeDIN rail TH35
