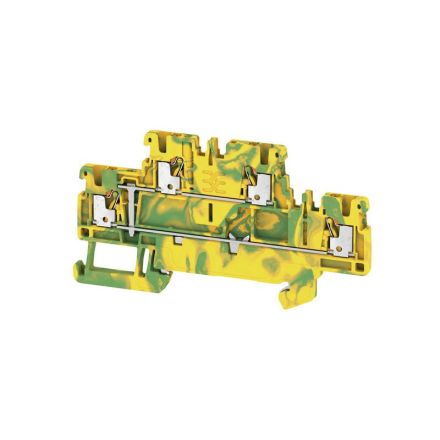

Weidmüller 2469410000 A2T 1.5 PE terminal blocks

In stock

SKU: 652280

Price on request

€6.10

€0

Overview

Terminal for space-saving connection or connection of wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Property	Value
Color:	green/yellow
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.5 to 1.5 mm²
Rated voltage:	500 V
Number of levels:	2
Number of terminal points per level:	2
Operating temperature:	-60 to 130 °C
Connectable conductor cross-section, single-wire:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 1.5 mm²
Design of electrical connection 1:	Plug connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	yes
Material of the insulating body:	Thermoplastic
