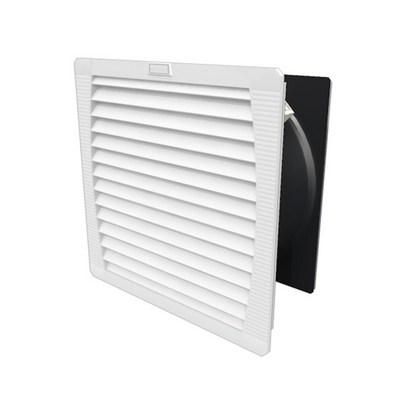

Weidmüller 2556870000 FF 65 54/230V GY filter fan

Weidmüller 2556870000 FF 65 54/230V GY filter fan

In stock

SKU: 652844

Price on request

€164.62

€0

Into a basketIn the basketGo

Overview

Filter fan for recirculating and circulating air in the control cabinet.

Property	Value
Height:	320 mm
Width:	320 mm
Depth:	157 mm
With filter:	yes
Operating voltage at AC 50 Hz:	212 to 245 V
Volume flow, free blowing:	480 m³/h
Suitable for 482.6 mm (19 inch) installation:	no
Circulation fan:	no
Wall installation:	yes
Designed as a slide-in fan:	no
Roof fan:	yes
EMC version:	no
Protection class (IP):	IP54
Mounting type:	Snap fastening
Color:	grey
RAL number:	7035

Characteristics

Operating voltage at AC 50 Hz212 to 245 V

HABFF 65 54/230V GY

Manufacturer

HAN2556870000

GTIN4050118567496

Width320 mm

EMC versionNo

Color

Height320 mm

Mounting typeSnap fastening

RAL number7035

IP protection)IP54

Depth157 mm
