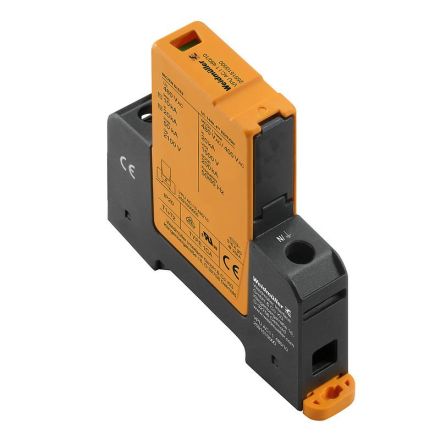

Weidmüller 2591510000 VPU AC I 1 480/10 surge arrester

Weidmüller 2591510000 VPU AC I 1 480/10 surge arrester

In stock

SKU: 653623

Price on request

€138.48

€0

Into a basketIn the basketGo

Overview

Device for surge protection in energy technology and power supply. The device should be installed close to the power supply of the system to be protected.

Property	Value
Nominal discharge current (8/20):	20 kA
Maximum continuous voltage AC:	480 V
Nominal voltage AC:	400 V
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
Test class type 2:	yes
Max. Flexible conductor cross-section (fine-wire):	35 mm²
Max. Conductor cross-section rigid (single/multi-wire):	35 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	yes
Network type TN-C:	no
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Network type other:	yes
Number of conductors (without earth):	1
Short-circuit strength (Isccr):	50 kA
Max. discharge current (8/20):	20 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²

Max. conductor cross-section flexible (fine-stranded)35 mm²

Number of conductors (excluding earth)1

Network form TTNo

Network type TN-SNo

Max. discharge current (8/20)20 kA

Test class type 2Yes

Network form TNYes

Network type TN-CNo

Network type TN-C-SNo

Short circuit strength (Isccr)50 kA

Network type DCNo

Integrated backup fuseNo

Network type ITNo

HABVPU AC I 1 480/10

Manufacturer

HAN2591510000

GTIN4050118599435

Size1 TE

Highest continuous voltage AC480V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)20kA

Nominal voltage AC400V

IP protection)IP20

Signaling on the deviceOptical
