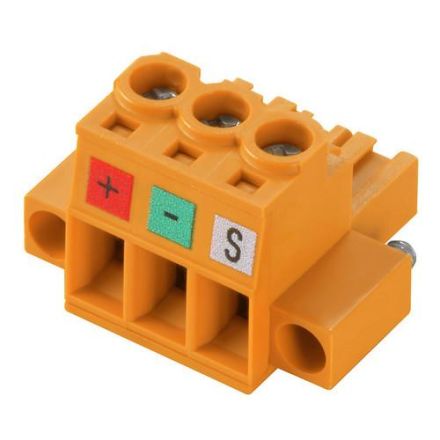

Weidmüller 2872550000 BLZP APL 5.00HC/03/180F SN OR BX sockets PCB connectors

Weidmüller 2872550000 BLZP APL 5.00HC/03/180F SN OR BX sockets PCB connectors

In stock

SKU: 923029

Price on request

€4.57

€0

Overview

2872550000 BLZP APL 5.00HC/03/180F SN OR BX sockets printed circuit board connectors Manufacturer article number: 2872550000, Manufacturer article name: BLZP APL 5.00HC/03/180F SN OR BX sockets

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.2 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.2 to 4 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 4 mm²
Design of the electrical connection:	Screw connection
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	21 A
Operating temperature:	-50 to 100 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	orange
Contact design:	socket
With protective conductor:	no
Pitch of connections:	5 mm
Pitch of contacts:	5 mm
Protection class (IP), mounted:	other
Overvoltage category:	III
Pollution degree:	1
Material of the contact coating:	Tin
Material of the housing:	Plastic
Material of the insulating body:	Polybutylene terephthalate
Material of the contact:	Copper
Angle of contact/conductor connection:	180° (horizontal)
Type of connection:	flexible printed circuit board connector
Number of poles:	3
Coating Housing:	other
