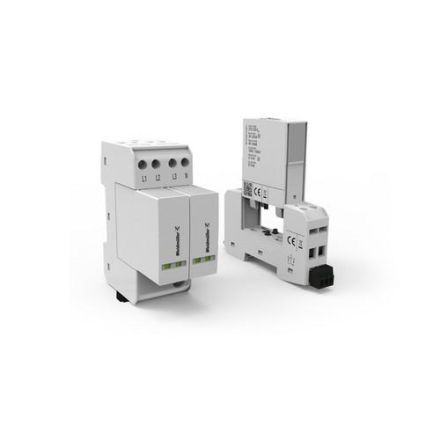

Weidmüller 2907700000 VPU AC II+III 3 275/40 S 275VAC / 40 kA lightning current arrester

Weidmüller 2907700000 VPU AC II+III 3 275/40 S 275VAC / 40 kA lightning current arrester

In stock

SKU: 922719

Price on request

€139.30

€0

Into a basketIn the basketGo

Overview

2907700000 VPU AC II+III 3 275/40 S 275VAC / 40 kA lightning current arrester Manufacturer article number: 2907700000, Manufacturer article name: VPU AC II+III 3 275/40 S 275VAC / 40 kA

Property	Value
Nominal discharge current (8/20):	20 kA
Highest continuous voltage AC:	275 V
Nominal voltage AC:	230 V
Mounting type:	DIN rail TH35
Size:	2 TE
Signaling on the device:	optical
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	6 mm²
Max. Conductor cross-section rigid (single/multi-wire):	10 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	yes
Network type TN-C:	yes
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Number of conductors (without earth):	2
Short-circuit strength (Isccr):	25 kA
Max. discharge current (8/20):	20 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)10 mm²

Max. conductor cross-section flexible (fine-stranded)6 mm²

Number of conductors (excluding earth)2

Network form TTNo

Network type TN-SNo

Max. discharge current (8/20)20 kA

Test class type 2Yes

Network form TNYes

Network type TN-CYes

Network type TN-C-SNo

Short circuit strength (Isccr)25 kA

Network type DCNo

Integrated backup fuseNo

Network type ITNo

HABVPU AC II+III 3 275/40 S 275VAC / 40 kA

Manufacturer

HAN2907700000

GTIN4099986182387

Size2 HP

Highest continuous voltage AC275V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)20kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical
