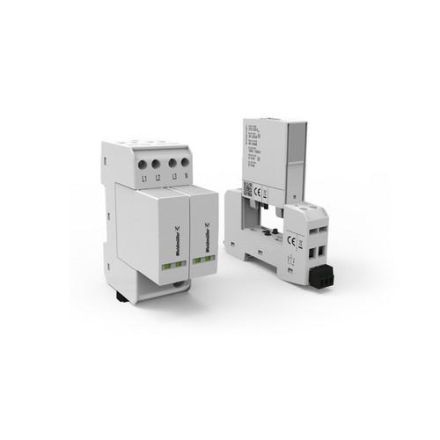

Weidmüller 2907750000 VPU AC II+III 1+1 R 275/40 S 275VAC / 40 lightning current arrester

Weidmüller 2907750000 VPU AC II+III 1+1 R 275/40 S 275VAC / 40 lightning current arrester

In stock

SKU: 922716

Price on request

€106.23

€0

Into a basketIn the basketGo

Overview

2907750000 VPU AC II+III 1+1 R 275/40 S 275VAC / 40 lightning current arrester Manufacturer article number: 2907750000, Manufacturer article name: VPU AC II+III 1+1 R 275/40 S 275VAC / 40

Property	Value
Nominal discharge current (8/20):	20 kA
Highest continuous voltage AC:	275 V
Nominal voltage AC:	230 V
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	6 mm²
Max. Conductor cross-section rigid (single/multi-wire):	10 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	yes
Network type TN-C:	no
Network type TN-CS:	yes
Network type TN-S:	yes
Network type TT:	yes
Number of conductors (without earth):	2
Short-circuit strength (Isccr):	25 kA
Max. discharge current (8/20):	20 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)10 mm²

Max. conductor cross-section flexible (fine-stranded)6 mm²

With remote signaling contactYes

Number of conductors (excluding earth)2

Network form TTYes

Network type TN-SYes

Max. discharge current (8/20)20 kA

Test class type 2Yes

Network form TNYes

Network type TN-CNo

Network type TN-C-SYes

Short circuit strength (Isccr)25 kA

Network type DCNo

Integrated backup fuseNo

Network type ITNo

HABVPU AC II+III 1+1 R 275/40 S 275VAC / 40

Manufacturer

HAN2907750000

GTIN4099986189645

Size1 TE

Highest continuous voltage AC275V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)20kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical
