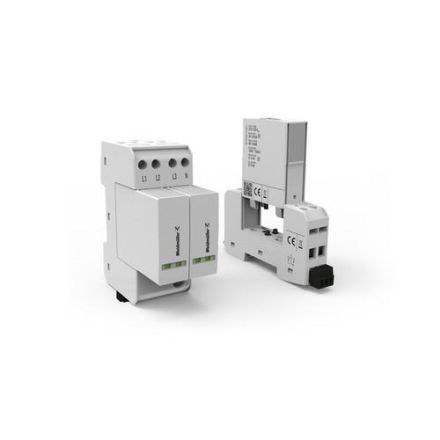

Weidmüller 2907980000 VPU AC II+III 0 L-PEN 275/20 S 2 lightning arrester

Weidmüller 2907980000 VPU AC II+III 0 L-PEN 275/20 S 2 lightning arrester

In stock

SKU: 922712

Price on request

€51.44

€0

Into a basketIn the basketGo

Overview

2907980000 VPU AC II+III 0 L-PEN 275/20 S 2 lightning arrester Manufacturer article number: 2907980000, Manufacturer article name: VPU AC II+III 0 L-PEN 275/20 S 2

Property	Value
Nominal discharge current (8/20):	10 kA
Highest continuous voltage AC:	275 V
Nominal voltage AC:	230 V
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	6 mm²
Max. Conductor cross-section rigid (single/multi-wire):	10 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	yes
Network type TT:	no
Number of conductors (without earth):	1
Short-circuit strength (Isccr):	25 kA
Max. discharge current (8/20):	10 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)10 mm²

Max. conductor cross-section flexible (fine-stranded)6 mm²

Number of conductors (excluding earth)1

Network form TTNo

Max. discharge current (8/20)10 kA

Test class type 2Yes

Network form TNYes

Short circuit strength (Isccr)25 kA

Network type DCNo

Integrated backup fuseNo

Network type ITNo

HABVPU AC II+III 0 L-PEN 275/20 S???????? 2

Manufacturer

HAN2907980000

GTIN4099986190139

Size1 TE

Highest continuous voltage AC275V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)10kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical
