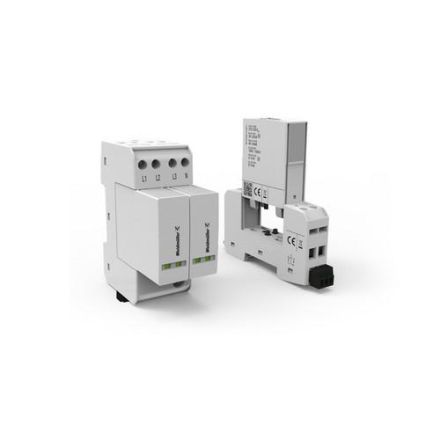

Weidmüller 2908510000 VPU AC II+III 1+1 R 440/20 S 400VAC / 20 lightning arrester

Weidmüller 2908510000 VPU AC II+III 1+1 R 440/20 S 400VAC / 20 lightning arrester

In stock

SKU: 922729

Price on request

€134.86

€0

Into a basketIn the basketGo

Overview

2908510000 VPU AC II+III 1+1 R 440/20 S 400VAC / 20 lightning current arrester Manufacturer article number: 2908510000, Manufacturer article name: VPU AC II+III 1+1 R 440/20 S 400VAC / 20

Property	Value
Nominal discharge current (8/20):	10 kA
Highest continuous voltage AC:	440 V
Nominal voltage AC:	230 V
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	6 mm²
Max. Conductor cross-section rigid (single/multi-wire):	10 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	no
Network type IT:	no
Network type TN:	yes
Network type TN-C:	no
Network type TN-CS:	yes
Network type TN-S:	yes
Network type TT:	yes
Number of conductors (without earth):	2
Short-circuit strength (Isccr):	25 kA
Max. discharge current (8/20):	10 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)10 mm²

Max. conductor cross-section flexible (fine-stranded)6 mm²

With remote signaling contactYes

Number of conductors (excluding earth)2

Network form TTYes

Network type TN-SYes

Max. discharge current (8/20)10 kA

Test class type 2Yes

Network form TNYes

Network type TN-CNo

Network type TN-C-SYes

Short circuit strength (Isccr)25 kA

Network type DCNo

Integrated backup fuseNo

Network type ITNo

HABVPU AC II+III 1+1 R 440/20 S 400VAC / 20

Manufacturer

HAN2908510000

GTIN4099986190924

Size1 TE

Highest continuous voltage AC440V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)10kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical
