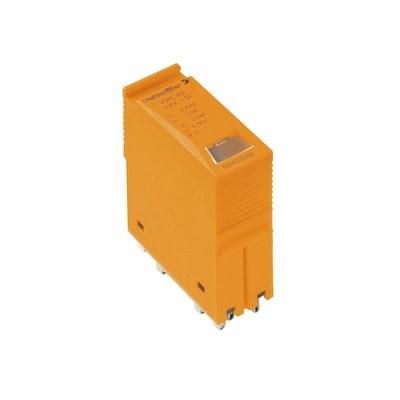

Weidmüller 8924370000 VSPC 2SL 48VAC surge arrester

In stock
SKU: 651889
€84.28
Into a basketIn the basketGo

Overview

Device for overvoltage protection in information technology and measurement technology. The device should be installed close to the device to be protected.

Property Value
Signaling on the device: without
Nominal discharge current (8/20): 2.5 kA
Nominal load current: 250 A
Connection 1: other
Maximum continuous voltage DC: 85 V
Maximum continuous voltage AC: 60 V
Protection level wire/earth: 80 V
Protection level signal ground/protective ground: 450 V
Protection level wire/signal ground: 80 V
With remote signaling contact: no
Explosion-tested version: yes
Arrester monitoring: no
Nominal voltage DC: 68 V
Frequency: 8.7 MHz
Rated voltage AC: 48 V

Characteristics

Explosion-tested versionYes
With remote signaling contactNo
Connection 1Other
Highest continuous voltage DC85 V
Nominal load current250 A
Nominal voltage DC68 V
Protection level wire/earth80 V
HABVSPC 2SL 48VAC
ManufacturerWeidmüller
HAN8924370000
GTIN4032248696017
Frequency8.7MHz
Highest continuous voltage AC60V
Nominal discharge current (8/20)2.5kA
Nominal voltage AC48V
Signaling on the deviceWithout
