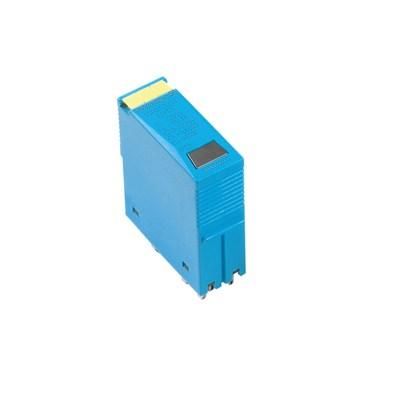

Weidmüller 8953610000 VSPC 1CL PW 24V EX surge arrester

In stock

SKU: 651911

Price on request

€164.21

€0

Overview

Device for overvoltage protection in information technology and measurement technology. The device should be installed close to the device to be protected.

Property	Value
Signaling on the device:	without
Nominal discharge current (8/20):	2.5 kA
Nominal load current:	350 A
Connection 1:	other
Maximum continuous voltage DC:	38 V
Maximum continuous voltage AC:	27 V
Protection level wire/wire:	40 V
Protection level wire/earth:	450 V
Protection level signal ground/protective ground:	450 V
Protection level wire/signal ground:	450 V
With remote signaling contact:	no
Explosion-tested version:	yes
Arrester monitoring:	no
Nominal voltage DC:	24 V
Frequency:	3 MHz
Rated voltage AC:	24 V
