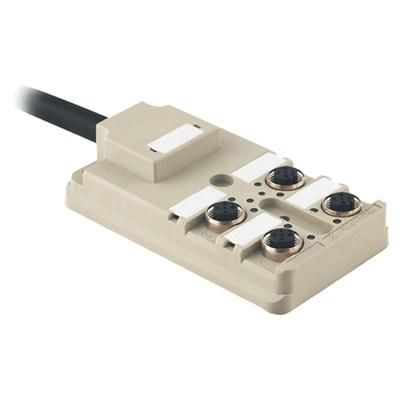

Weidmüller 9456320000 SAI-4-F 5P PUR 3m 4 slots M12 passive sensor-actuator distributor

In stock

SKU: 641357

Price on request

€90.03

€0

Overview

Distributor for bundling several input signals to a central cable outlet.

Property	Value
Number of sensor/actuator slots:	4
Length of the pre-assembled cable:	3 m
Number of poles of the sensor/actuator slots:	5
Protection class (IP):	IP68
Height:	25 mm
Width:	60 mm
Material of the contact body:	Brass
Connection for NPN sensors:	no
With potential separation:	no
With LED display:	yes
Degree of pollution:	3
Material of the contact coating:	Gold
Cable length configurable:	no
Operating temperature:	-20 to 80 °C
Number of channels per slot:	5
Material of the insulating body:	PBT
Explosion protection category for dust:	without
Drag chain suitability of the fixed cable version:	yes
Design of the outlets for sensor/actuator cables:	other
Material of the housing:	plastic
Threaded bushings of the sensor/actuator slots:	M12
Operating voltage:	30 to 10 V
Explosion protection category for gas:	without
Max. current load per I/O signal:	4 A
Max. current load per connection socket:	4 A
Housing color:	gray
Depth:	102 mm
