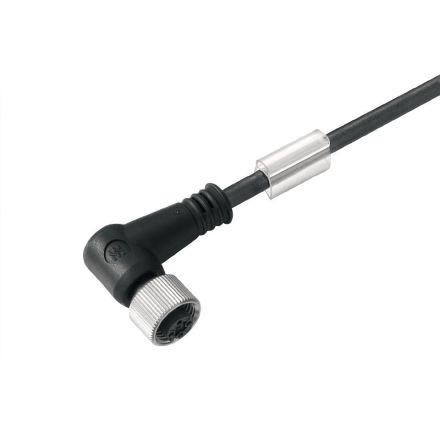

Weidmüller 9457740120 SAIL-M12BW-4-1.2U sensor/actuator cable

In stock

SKU: 650621

Price on request

€9.80

€0

Overview

The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable offers a factory-connected and tested connection of the connector to the cable.

Property	Value
Rated current In:	4 A
Color of the cable sheath:	black
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Number of poles:	4
Design of electrical connection, field side:	M12
Type of plug contact, field side:	Female (socket)
Arrangement of the cable feed, field side:	angled
Design of electrical connection, housing side:	M12
Type of plug contact, housing side:	Female (socket)
Arrangement of the cable feed, housing side:	angled
Cable length:	1.2 m
Halogen-free:	yes
Shielded:	no
Radiation-crosslinked:	no
Permissible external cable temperature after installation without vibration:	-40 to 80 °C
Permissible external cable temperature during installation/handling:	-25 to 80 °C
Rated voltage:	250 V
Protection class (IP):	IP65
